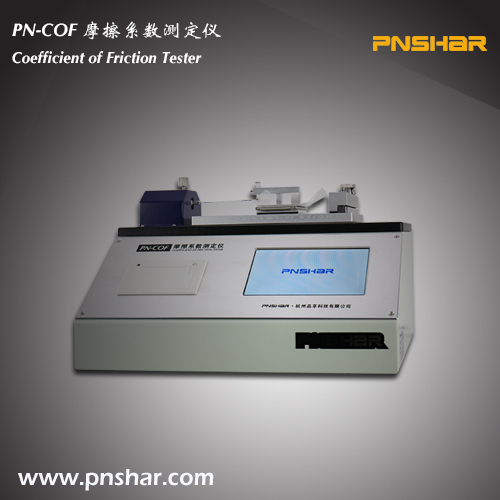

PN-COF Coefficient of Friction Tester
Categories：Other Lab Tester
Name：PN-COF Coefficient of Friction Tester
Model：PN-COF
PN-COF coefficient of friction tester is mainly used to measure the static friction coefficient and dynamic friction coefficient of plastic films and sheets (or other similar materials) paper.
Download：
Video：Click Play
Introduction
Friction tester is a kind of testing equipment which is used to measure coefficient of friction (COF) for materials. Basically, there are two kinds of coefficients: static coefficient of friction and kinetic coefficient of friction. Coefficient of friction testing is widely valued for its important role in the processes of production, transportation and marketing.
Technical parameter
1. Power Supply: (100～240)VAC 2A 50/60Hz
2. Measuring Range: ≤10N
3. Resolution: 0.001N
4. Indication error: ±1%；
5. Indication variability: ≤1%；
6. Sample Size:80mm×200mm
7. Sample thickness: ≤0.5mm
8. Slider size: 63mm*63mm
9. Slider weight: 200g± 2g
10. Dimension of working plate:120mm×240mm
11. Test speed: (100±10) mm/min, maximum 500mm/min
12. Working stroke: 100mm
13. Display: 7” color touchscreen
14. Printer: Thermal printer
15. Data Output: RS232(Standard) / USB(Optional）
16. Working condition: Indoor temp (20 ± 10)°C, relative humidity ＜ 85％
17. Dimension: (410×314×300)mm(L×W×H）
18. Net Weight: About 20kg
2. Measuring Range: ≤10N
3. Resolution: 0.001N
4. Indication error: ±1%；
5. Indication variability: ≤1%；
6. Sample Size:80mm×200mm
7. Sample thickness: ≤0.5mm
8. Slider size: 63mm*63mm
9. Slider weight: 200g± 2g
10. Dimension of working plate:120mm×240mm
11. Test speed: (100±10) mm/min, maximum 500mm/min
12. Working stroke: 100mm
13. Display: 7” color touchscreen
14. Printer: Thermal printer
15. Data Output: RS232(Standard) / USB(Optional）
16. Working condition: Indoor temp (20 ± 10)°C, relative humidity ＜ 85％
17. Dimension: (410×314×300)mm(L×W×H）
18. Net Weight: About 20kg
Product features
1. Adopts servo motor low noise and precise control
2. A color touch screen is used to display various data in real time
3. Simple parameter setting convenient and reliable testing
4. With statistical function statistical display of average maximum minimum standard deviation and coefficient of variation
5. Data communication: standard serial RS232 interface.
2. A color touch screen is used to display various data in real time
3. Simple parameter setting convenient and reliable testing
4. With statistical function statistical display of average maximum minimum standard deviation and coefficient of variation
5. Data communication: standard serial RS232 interface.
National standard
ISO8295 TAPPI T816 GB10006-88 ASTM D 1894-01
