Interbond Station
Categories：Other Lab Tester

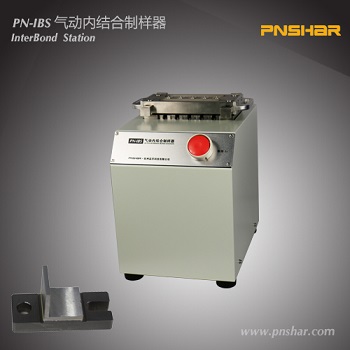

Name：Interbond Station
Model：PN-IBS
PN-IBS Interbond Station is an internal bond strength sampler designed and developed according to the national standard GB/T 26203
Download：
Video：Click Play
Introduction
PN-IBS Interbond Station is an internal bond strength sampler designed and developed according to the national standard GB/T 26203. The sample preparation device adopts pneumatic clamping of the sample, and the base is made of stainless steel. It has the advantages of high sampling size accuracy and easy operation.
Technical parameter
Air source: (0.4~0.8)mPa
Clamping force: (345~1034)kPa
Sample pressing time:2~3s
Sample size: 25.4X25.4mm
Capcity: 5pcs at one process.
Dimension: 400X320X320mm (L * W* H)
Weight: about 30kg
Note: The air compressor equipped with the sample preparation is purchased by the user. The compressor is equipped with the specifications of the user: the displacement (0.1 ～ 0.3) m3 / min and the rated pressure (0.6 ～ 0.8) MPa. During the test according to the requirements of the sample adjust the pressure regulating valve on the instrument to make the pressure indication value within the specified range. See Table 1 for the adjusted pressure value
Clamping force: (345~1034)kPa
Sample pressing time:2~3s
Sample size: 25.4X25.4mm
Capcity: 5pcs at one process.
Dimension: 400X320X320mm (L * W* H)
Weight: about 30kg
Note: The air compressor equipped with the sample preparation is purchased by the user. The compressor is equipped with the specifications of the user: the displacement (0.1 ～ 0.3) m3 / min and the rated pressure (0.6 ～ 0.8) MPa. During the test according to the requirements of the sample adjust the pressure regulating valve on the instrument to make the pressure indication value within the specified range. See Table 1 for the adjusted pressure value
| yle="width:154px;"> Clamping force(kPa) | yle="width:153px;"> Clamping force (N) | yle="width:154px;"> Pressure gauge(MPa) | yle="width:153px;"> Note |
| yle="width:154px;"> 345 | yle="width:153px;"> 205 | yle="width:154px;"> 0.2 | yle="width:153px;"> Usually set to 0.3MPa |
| yle="width:154px;"> 609 | yle="width:153px;"> 427 | yle="width:154px;"> 0.3 | |
| yle="width:154px;"> 1034 | yle="width:153px;"> 650 | yle="width:154px;"> 0.4 |
Product features
Pneumatic sample pressing;
One button operation press the button to press and stop by loose the button.
One button operation press the button to press and stop by loose the button.
National standard
GB/T 26203
