Sample Holder E-Flute

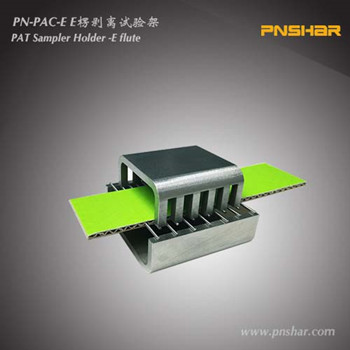

 The PN-PAC-E sample holder E-flute is a necessary accessory for PAT test. The sample holder consists of a lower pin holder, an upper pin holder, and pins. It has the characteristics of convenient operation, no need adjustment, and strong applicability. It can be used to determine the PAT of corrugated cardboard with a compression strength tester.
PAT tests have strict requirements on the thickness and type of corrugated cardboard. The thickness of single corrugated cardboard should be higher than the lower limit of the corresponding corrugation height specified in the table. For corrugated structures, UV-type structures are required.

Flute	Flute hight h/mm	Flute width t/mm	Amount pcs/300mm
E	1.1~2.0	3.0~3.5	93±6

Pin diameter:φ1.0mm(E Typeoptinal);
Sample size: 25mm×100mm;
Pin axis parallel to the bottom of error: after sample loaded﹤100(1); when force 300N ﹤200(1);
Max. dimension with sample: 48 X 46 X36mm
Working environment:Room temp（20  ±  10 ）°C;humidity ＜ 85％;
Note: When cutting a specimen with a length of 25mm × 100mm pay attention to the direction of the corrugation. The direction of the corrugation is the short side.
