Glossiness Meter
Categories：Cutter & Accessories
Name：Glossiness Meter
Model：MG6-F1

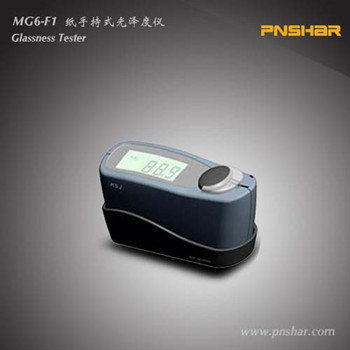

MG6-F1 gloss meter is a compact gloss measurement instrument designed and manufactured in accordance with the international standard ISO 2813 and national standard GB / T 9754.
Download：
Video：Click Play
Introduction
MG6-F1 gloss meter is a compact gloss measurement instrument designed and manufactured in accordance with the international standard ISO 2813 and national standard GB / T 9754. All performance indicators have reached the first and second level requirements in the national JJG696-2002 "Mirror Gloss Meter and Gloss Board" measurement regulations. It is mainly suitable for the determination of the surface gloss of color printing on cartons.
Scope of application: gloss measurement of the surface of coating materials such as paints, baking paints, coatings, and inks. Measurement of the surface gloss of building and decorative materials such as stone, tile, and profile. Gloss measurement of paper, bamboo, plastic, film, etc
Scope of application: gloss measurement of the surface of coating materials such as paints, baking paints, coatings, and inks. Measurement of the surface gloss of building and decorative materials such as stone, tile, and profile. Gloss measurement of paper, bamboo, plastic, film, etc
Technical parameter
Reading range: 10.0 ～ 199.9 gloss unit
Measurement range: 0.1 ～ 150.0 gloss unit
Resolution: 0.1 Gloss Unit
Indication error: ± 1.2 gloss unit
Zero error: 0.2 gloss unit
Stability: 0.4 Gloss Unit
Light spot: 20mm × 10mm
Projection angle: 60 °
Measurement range: 0.1 ～ 150.0 gloss unit
Resolution: 0.1 Gloss Unit
Indication error: ± 1.2 gloss unit
Zero error: 0.2 gloss unit
Stability: 0.4 Gloss Unit
Light spot: 20mm × 10mm
Projection angle: 60 °
Product features
NO
National standard
NO
Relevant information
NO
