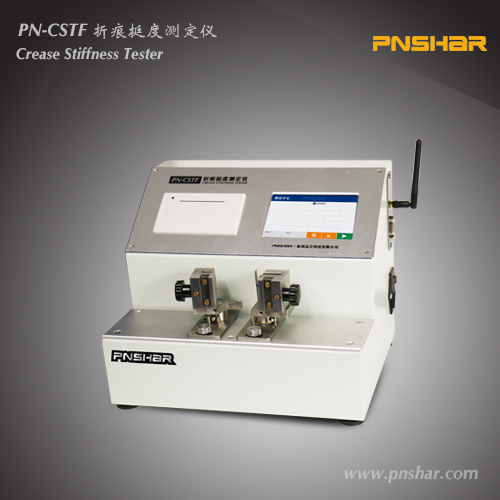

Crease Stiffness Tester PN-CSTF

PN-CSTF Crease Stiffness Tester is a testing instrument with two test functions of 15° stiffness and 90° crease stiffness designed and developed by our company according to relevant standards, which is mainly suitable for the testing of stiffness performance in the packaging and paper industry.

1.    Power Supply: AC（100～240）V  2A  50/60Hz;
2.    Indication Error: ±1%;
3.    Indication Variability:  ≤1%;
4.    Resolution: 0.1mN
5.    Measure Range: ≤10000mN
6.    Sample size: 70mm*38mm (15°stiffness test) / 36*38mm (90°crease stiffness test)
7.    Bend Length: (50±0.5)mm；(10±0.2)mm;
8.    Bend Aangle: (15±0.3)º;(90±0.5)º;
9.    Display: 5〃Color touch screen;
10.    Printer: Thermal Printer;
11.    Output: RS232(Standard) / USB(selectable);
12.    Working condition: Indoor temp (20 ± 10)°C, relative humidity ＜ 85％
13.    Dimension: (250×170×210)mm(L×W×H);
14.    Weight: about 8kg.



                  Crease recovery sample



                     Sampling point

1.    Adopt new module circuit design, with WIFI IoT function. After networking, the test results can be saved to the cloud server, and through the dedicated PN-QMS series quality management system, data query, management, reporting, big data analysis statistics, and visual large-screen display can be carried out.
2.    With 15° stiffness and 90° crease stiffness 2 test modes;
3.    Preset parameters to achieve one-click test;
4.    Optimize the test program to achieve rapid testing and improve test efficiency;
5.    5Optional: It can be connected to computer-specific test software to display test curves, massive test data storage and query, management, analysis, reporting, and other functions in real-time.

GB/T 23144 、ISO 5628 、BS6965-1

PN-CSTF Crease Stiffness Tester is a testing instrument with two test functions of 15° stiffness and 90° crease stiffness designed and developed by our company according to relevant standards, which is mainly suitable for the testing of stiffness performance in the packaging and paper industry.
In the high-speed automatic packaging line, it is easy to have the phenomenon of weak adhesion or card packaging, which reduces production efficiency. The main reason for the above phenomenon is that the proportion of the stiffness value of the cardboard and the crease force value of the cardboard after indentation is not suitable.
Working principle of 15° stiffness: Under standard conditions, the force or moment when the specimen of the specified size clamped at one end of the bending is bent to 15°, expressed in mN or mN·m.
Working principle of 90° crease stiffness: After waiting for 15 seconds for a specimen that has undergone a 90° bend, its resilience is measured, expressed in mN.
