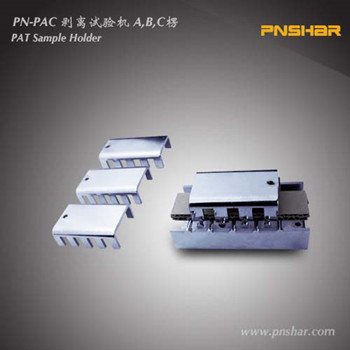

PAT Sample Holder
Categories：Cutter & Accessories
Name：PAT Sample Holder
Model：PN-PAC
PN-PAC sample holder is a necessary accessory for PAT test. The sample holder consists of a lower pin holder an upper pin holder and pins.
Download：
Video：Click Play
Introduction
PN-PAC sample holder is a necessary accessory for PAT test. The sample holder consists of a lower pin holder, an upper pin holder, and pins. It has the characteristics of convenient operation, no need adjustment, and strong applicability. It can be used to determine the PAT of corrugated cardboard with a compression strength tester.
PAT tests have strict requirements on the thickness and type of corrugated cardboard. The thickness of single corrugated cardboard should be higher than the lower limit of the corresponding corrugation height specified in the table. For corrugated structures, UV-type structures are required.
PAT tests have strict requirements on the thickness and type of corrugated cardboard. The thickness of single corrugated cardboard should be higher than the lower limit of the corresponding corrugation height specified in the table. For corrugated structures, UV-type structures are required.
| Flute | Flute hight h/mm | Flute width t/mm | Amount pcs/300mm |
| A | 4.5~5.0 | 8.0~9.5 | 34±3 |
| C | 3.5~4.0 | 6.8~7.9 | 41±3 |
| B | 2.5~3.0 | 5.5~6.5`` | 50±4 |
Technical parameter
Pin diameter:φ3.5mm(A Type)；φ3mm(C Type)；φ2.0mm(B Type)；
Sample size: 25mm×100mm(Old GB: 25mm×80mm)；
Pin axis parallel to the bottom of error:with sample﹤100；when force 300N ﹤200;
Working environment:Room temp（20 ± 10 ）°C；humidity ＜ 85％；
With loading the sample the largest size: 83mm×66mm×48mm(L×W×H)
Sample size: 25mm×100mm(Old GB: 25mm×80mm)；
Pin axis parallel to the bottom of error:with sample﹤100；when force 300N ﹤200;
Working environment:Room temp（20 ± 10 ）°C；humidity ＜ 85％；
With loading the sample the largest size: 83mm×66mm×48mm(L×W×H)
Product features
NO
National standard
GB/T 6544 GB/T 6548
