Circular Sample Cutter
Categories：Cutter & Accessories

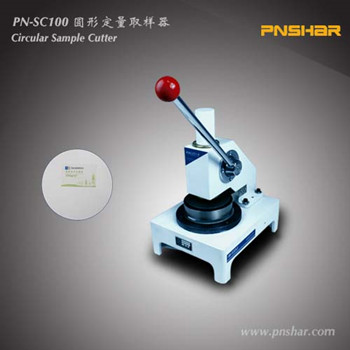

Name：Circular Sample Cutter
Model：PN-SC100
Circular Sample Cutter can get a circular sampler. Then sampling equipment can cut the sample size quickly and accurately for sampling of Grammage
Download：
Video：Click Play
Introduction
It is the ideal test apparatus of making paper, packaging and other industries of Quality Supervision, Inspection and departments supporting.
PN-SC100 is stamping type, easy to use, beautiful, applied research and enterprises and institutions.
PN-WG1 is a rotary type, economical, suitable for short fiber thinner paper sampling and is not commonly used.
Technical parameter
Sampling area：100cm2 ;
Sampling error：±0.35cm2 ;
Sampling thickness：(0.1～1.0)mm ;
Work environment：Room temp（20 ± 10 ）°C;humidity ＜ 85％ ;
Dimension：（310 × 250 × 400）mm（L×W×H）；（Φ160 × 130）mm（Φ×H）;
Net weight： About 25.4 kg；about1.5 kg.
Sampling error：±0.35cm2 ;
Sampling thickness：(0.1～1.0)mm ;
Work environment：Room temp（20 ± 10 ）°C;humidity ＜ 85％ ;
Dimension：（310 × 250 × 400）mm（L×W×H）；（Φ160 × 130）mm（Φ×H）;
Net weight： About 25.4 kg；about1.5 kg.
Product features
NO
National standard
QB/T 1671
Relevant information
NO
