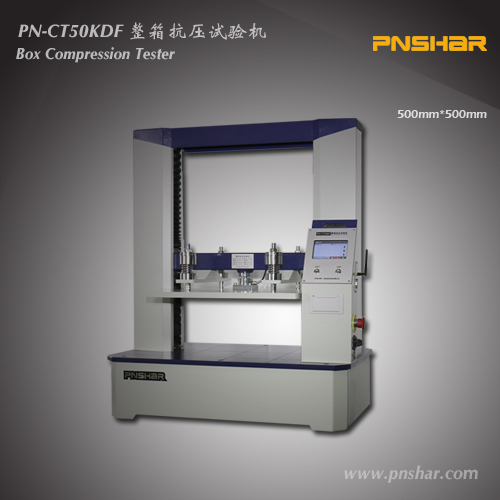

Box Compression Tester-500

      PN-CT50KDF Box Compression tester is an economical tester designed by our company for compression test and stacking tests of corrugated boxes and honeycomb cartons. Its performance parameters and technical indicators are in accordance with GB/T 4857.3/4, ISO 12048, ISO 2234 and other standards are mainly used for the compressive strength test or other materials of various medium and small size corrugated boxes with compressive strength less than 10kN, such as food and beverage, instant noodle packaging, cosmetic packaging, beer packaging, grain and oil packaging, etc. .
The instrument has three independent modes of operation:
1. Strength test: measure the ultimate compressive strength and deformation of the box;
2. Fixed value test: The overall performance of the box can be tested according to the set pressure and deformation.
3. Stacking test: Simulate the stacking status of the warehouse, and carry out the stacking test of different conditions.

Power supply: AC220V±10% 50/60Hz（AC110V Optional）
Accuracy: ±1%;
Indication variability: ≤1%;
Resolution: 1 N;
Measurement range: (220 ~ 10000) N;
Deformation error: ±1 mm;
Platen area: 500mm×500mm
Plate parallelism: ≤Platen long side length * 0.2%.
Working stroke: (20 ~ 500)mm
Test speed: (10 ± 1)mm/min (1~120mm/min can be set);
Return speed: (5 ~ 120) mm / min;
Human Machine Interface: 5” color touch screen;
Printout: Modular integrated thermal printer;
Output: RS232 (standard) / USB (optional);
Working environment: indoor temperature (20 ± 10) °C; relative humidity < 85%;
Dimensions: (815 × 516 ×1017) mm (length × width × height)
Net Weight: About 166kg.

Adopt new module circuit design and have WIFI  function. After networking the test results can be saved to the cloud server and the ERP software can be used to query and generate reports.
Display pressure and deformation curves in real time;
Pre-set parameters one-click test simple and efficient operation;
Has a statistical function showing the mean standard deviation and coefficient of variation;
Safety device: overload emergency stop button control uplink and downlink limit control over-range alarm function.
The control circuit part adopts modular design and is easy to maintain;
Open structure design double screw double guide column good parallelism good stability strong rigidity and long service life;
Imported stepper motor control and subdivision technology are used to make the tester accurate positioning fast speed response save test time and improve test efficiency
Adopt high-speed ARM processor and 24-bit high-precision AD converter with fast data processing speed and high accuracy;
Built-in thermal printer for easy printing of test reports;
Connect to computer software test data can be exported to EXCEL for data saving analysis and management

GB/T 4857.3、GB/T 4857.4、ISO 12048、ISO 2234、QB/T 1048
